Cast Aluminum Precision Tool & Jig Plate
(discs) For Sale
Over 100 Tons available
Discounts | Ordering | Specifications | Typical Uses | Shipping | FAQ | About S&S Machine | Contact |
1 1/4" X 14 3/4" - - 1 1/4" X 18 11/16" - - 5/8"
X 16 9/16" - - 3/8" X 14 3/8"
Price* and Weight per Disc
Discounts
are determined by the total combined calculated weight
of your order. All sizes can be combined for a discount. |
Discounts are taken from the 0-99# base price. Price per Disc |
|||||||
No Discount |
12% |
15% |
20% |
25% |
30% |
|||
Size: Thick x Dia. (Click for photo) |
Part number |
Estimated Weight Each |
0-99# Base price |
100-249# |
250-499# |
500-999# |
1000-2499# |
2500+# |
AD1.25x18.68 |
34.62# |
$ 78.93 |
$69.46 |
$ 67.09 |
$ 63.14 |
$ 59.20 |
$ 55.25 |
|
AD1.25x14.75 |
21.57# |
$ 49.18 |
$ 43.28 |
$ 41.80 |
$ 39.34 |
$ 36.89 |
$ 34.43 |
|
5/8" x 14 7/16" 4 holes...see* | AD62x14.42 | 10.08# | $22.98 | $20.22 | $19.53 | $18.38 | $17.25 | $16.09 |
3/8 x 14 3/8" 3-holes..see* |
AD37x14.37 |
6.14# |
$ 14.00 |
$ 12.32 |
$ 11.90 |
$ 11.20 |
$ 10.50 |
$ 9.80 |
5/16" x 16 3/4" 4 holes...see* | AD31x16.75 | 6.72# | $15.32 | $13.48 | $13.02 | $12.26 | $11.49 | $10.72 |
Prices are subject to change
Please call for current pricing
We sell only the material and sizes listed on this page.
* Aluminum Tooling Plate Table Notes:

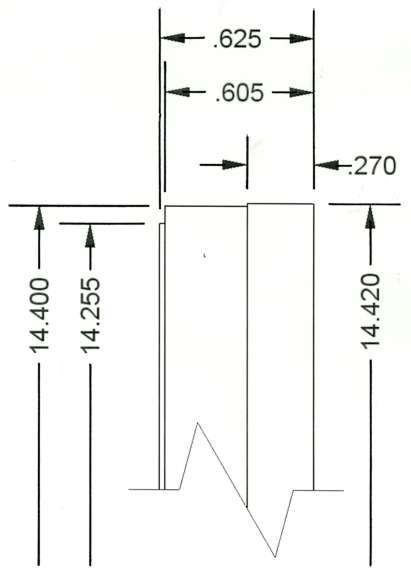

The 5/8" X 14.42" disc has 4 holes ..200 dia. on a 13.707 bolt circle diameter and a small step on the outside diameter and one face
The 3/8" X 14 3/8" disc has 3 holes .430" dia. on a 13" bolt circle diameter.
The 5/16" X 16.73 disc has 4 holes ..165 dia. on a 15.985 bolt circle diameter.
Prices are subject to change without notice.
Discs sold by each price and not actual weight.
Estimated weight is given for shipping and discount purposes only.
More notes about this material:
Discounts begin at 100 pounds.
Different sizes may be combined for a quantity discount.
